3x3 Video Wall Controller and Processor S853527
Sale price
$28.90
Regular price $124.63
Skip to product information
NINE-SCREEN PROCESSING – Create a 3x3 video wall from one of the 4 switchable sources: Type-C, VGA, DisplayPort, or HDMI. Pick from the preset modes or manually configure your video wall. Cascading up to a 10x10 video wall
4K RESOLUTION – Supports up to 4K @30Hz for USB-C, HDMI, and DisplayPort inputs and 1080p for VGA. 2 default EDID options: 4K @30Hz and 1080p
ADVANCED FEATURES – Supports 180º image rotation, edge correction, HDMI loopout, SPDIF Coaxial and Analog audio extraction, up 5.1-channel audio (HDMI input), firmware upgradable

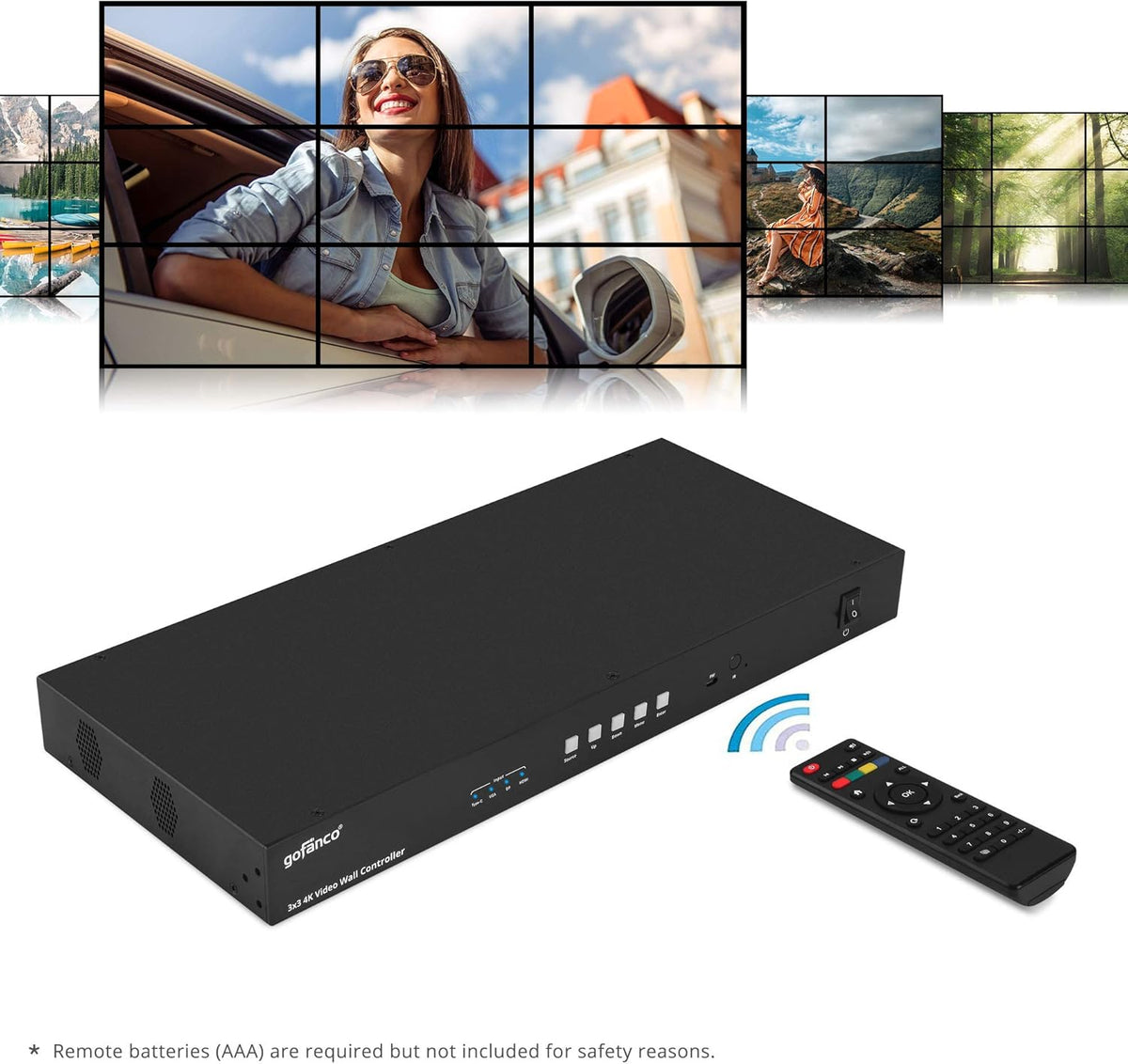

CONTROL METHODS – 1) Panel buttons, 2) IR remote, 3) RS-232, and 4) Web GUI control. *Note: Remote batteries (AAA) are required but not included for safety reasons

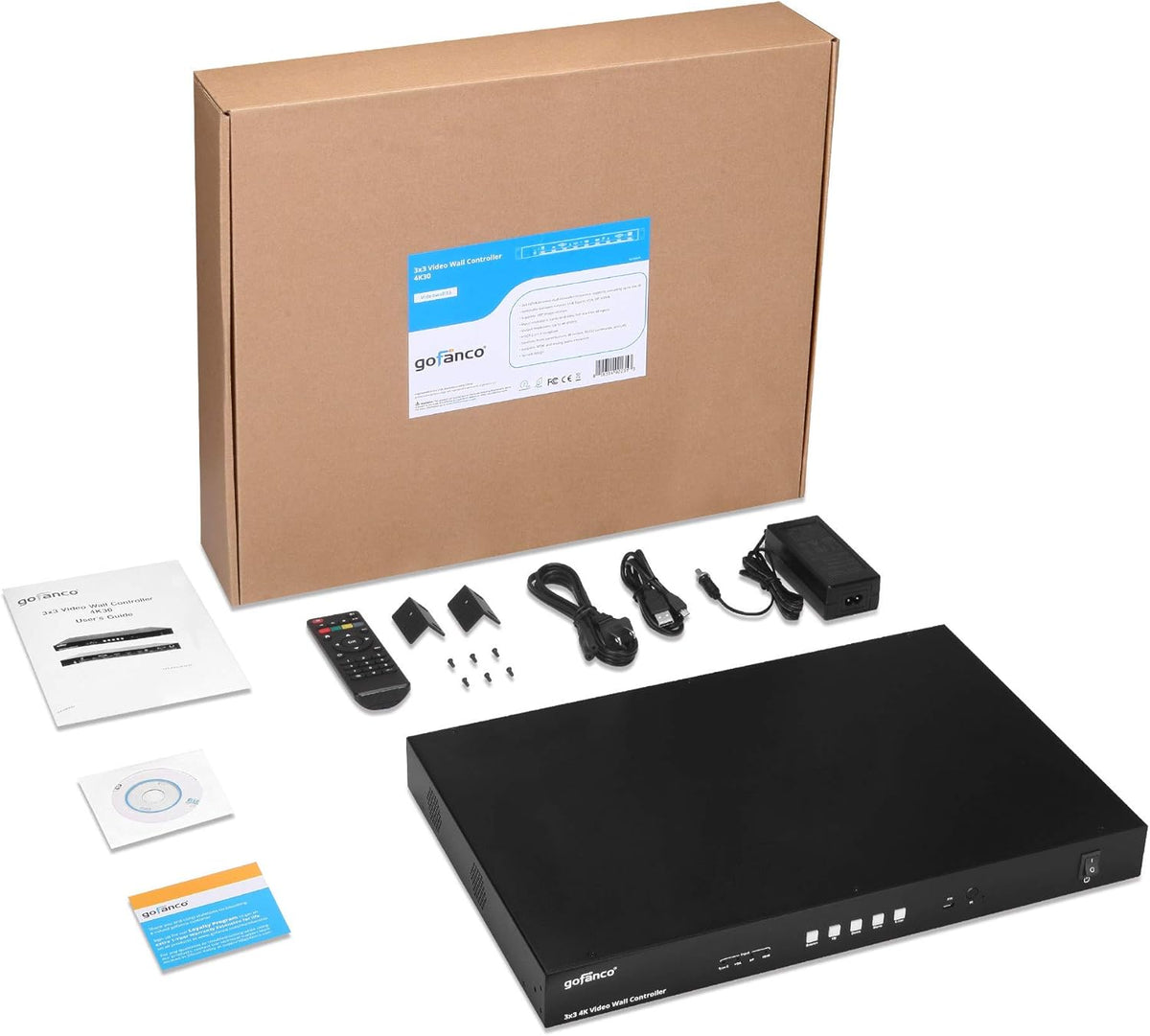

FIVE STAR CUSTOMER SUPPORT: Surface mountable 1U metal housing. FCC, CE and RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in the buy box and select 'Ask a Question'
3x3 Video Wall Controller and Processor S853527
Sale price
$28.90
Regular price $124.63
Shipping calculated at checkout.
NINE-SCREEN PROCESSING – Create a 3x3 video wall from one of the 4 switchable sources: Type-C, VGA, DisplayPort, or HDMI. Pick from the preset modes or manually configure your video wall. Cascading up to a 10x10 video wall
4K RESOLUTION – Supports up to 4K @30Hz for USB-C, HDMI, and DisplayPort inputs and 1080p for VGA. 2 default EDID options: 4K @30Hz and 1080p
ADVANCED FEATURES – Supports 180º image rotation, edge correction, HDMI loopout, SPDIF Coaxial and Analog audio extraction, up 5.1-channel audio (HDMI input), firmware upgradable
CONTROL METHODS – 1) Panel buttons, 2) IR remote, 3) RS-232, and 4) Web GUI control. *Note: Remote batteries (AAA) are required but not included for safety reasons
FIVE STAR CUSTOMER SUPPORT: Surface mountable 1U metal housing. FCC, CE and RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in the buy box and select 'Ask a Question'
| PRO-VideoWall | Videowall22 | Videowall33 | |
|---|---|---|---|
| Video Input | HDMI/Mini DisplayPort | USB-C/DVI-D/DisplayPort/HDMI | USB-C/VGA/HDMI 1/HDMI 2 |
| Video Output | HDMI (4) | HDMI (4) | HDMI (9) |
| Max Resolution Output | 1920x1200 @ 60Hz | 4K @ 30Hz * | 4K @ 30Hz * |
| Screen Configurations | 2x2, 1x3, 3x1, 1x4, 4x1 (Cascade up to 10x10) | 2x2, 1x3, 3x1, 1x4, 4x1 (Cascade up to 10x10) | 3x3, 2x2, 1x3, 3x1, 1x4, 4x1, 2x4, 4x2, 2x3, 3x2 (Cascade up to 10x10) |
| Control Methods | Panel Buttons / IR Remote Control / Ethernet / Cloud Software | Panel Buttons / IR Remote Control / RS-232 / Web GUI | Panel Buttons / IR Remote Control / RS-232 / Web GUI |
| Audio Extraction | S/PDIF & 3.5mm | S/PDIF & 3.5mm | |
| 180 Degree Screen Rotation | |||
| Edge Correction | |||
| Preset and Manual Modes | |||
| Supports Cascading |
